Improving Frontend Visual Fidelity: Resolving SVG Asset Issues

Fixing Visual Inconsistencies

When working on the 404-software-frontend project, maintaining the integrity of our assets is crucial for a professional user experience. A common challenge in web development is ensuring that Scalable Vector Graphics (SVG) render correctly across different viewports and browser environments. We recently addressed a recurring issue where SVG elements were failing to display as intended, disrupting the layout.

The Problem: Why SVGs Break

SVG assets often fail due to missing namespace attributes, improper viewport definitions, or browser-level parsing errors. In our case, the assets were not scaling correctly, causing elements to either overflow their containers or vanish entirely. Hardcoding dimensions into the SVG source often exacerbates the problem, making responsive design difficult to implement.

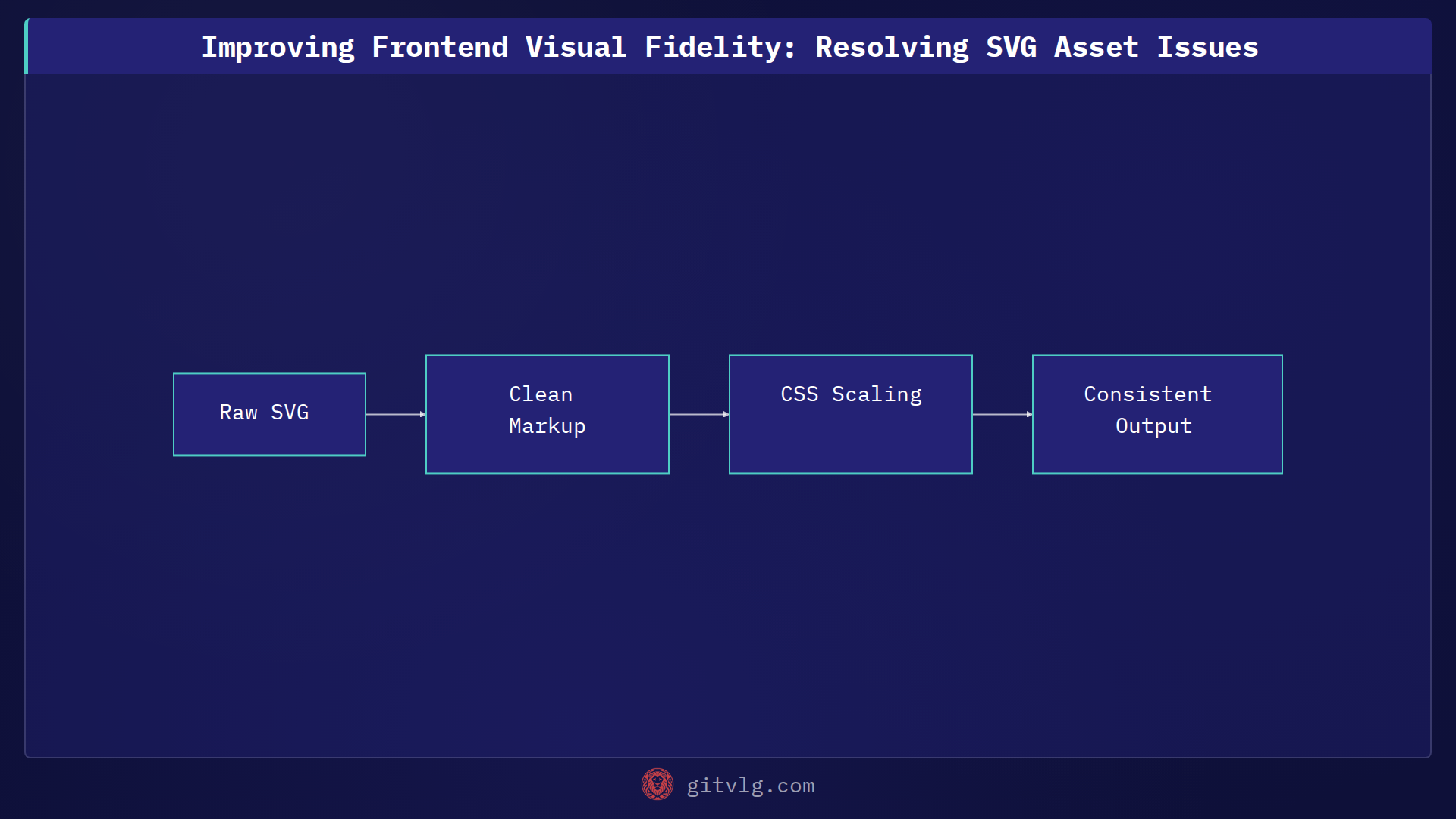

The Solution: Proper Markup and Responsive Styling

To ensure our SVGs remain consistent, we moved toward a clean, standardized implementation. By stripping out hardcoded width and height attributes and relying on CSS for scaling, we regained control over the display.

Here is an example of the modernized approach to embedding SVG content:

<!-- Clean SVG structure -->
<svg
  viewBox="0 0 100 100"
  class="responsive-icon"
  preserveAspectRatio="xMidYMid meet">
  <path d="M10 10 H 90 V 90 H 10 Z" />
</svg>

<style>
  .responsive-icon {
    width: 100%;
    height: auto;
    max-width: 48px;
  }
</style>

Results: Consistent Rendering

By ensuring the viewBox is correctly configured and removing fixed dimensions, we eliminated the rendering quirks that were previously affecting our interface. The images now scale fluidly within their parent containers, regardless of the screen size. This shift reduces the need for constant adjustments to asset files and provides a more predictable rendering lifecycle across modern browsers.

Key Takeaways for Frontend Assets

1. Always use viewBox: It provides a coordinate system that keeps your graphic responsive.
2. Leverage CSS: Let your stylesheets handle sizing, not the individual SVG file metadata.
3. Sanitize exports: Ensure that your design tools aren't embedding proprietary metadata that can bloat files or cause rendering errors.

Visual fidelity is a foundation of quality software. By treating SVGs as dynamic components rather than static images, you can significantly improve the polish of your frontend.
